Automated Storage System
Plate Material Intelligent Storage Tower
- Width Up to 6025 mm (customisable) Up to 237.2 in (customisable)
- Layer Quantity Configurable
- Load per layer 3 t / 5 t 3.3 st / 5.5 st
- Movement method Direct drive + rails
- Transmission method Chain transmission
- Layer lifting speed 9 m/min 29.5 ft/min
- Inlet speed 12 m/min 39.4 ft/min
The Plate Material Intelligent Storage Tower consists of an automated loading and unloading gantry, a fully automatic plate storage rack, an automatic weighing station, and a guided transfer mechanism. It enables centralized vertical storage of plates, automated weight detection, automatic loading, and automatic retrieval.
The system is controlled through PLC and a touchscreen interface, allowing visualized classification and management of plate materials.
Its structural design provides high reliability and long-term durability, supporting both gantry and forklift loading modes to accommodate varied production needs.
By stabilizing material flow and reducing manual handling, the system helps maintain product consistency, improve production efficiency, and lower overall operating costs.

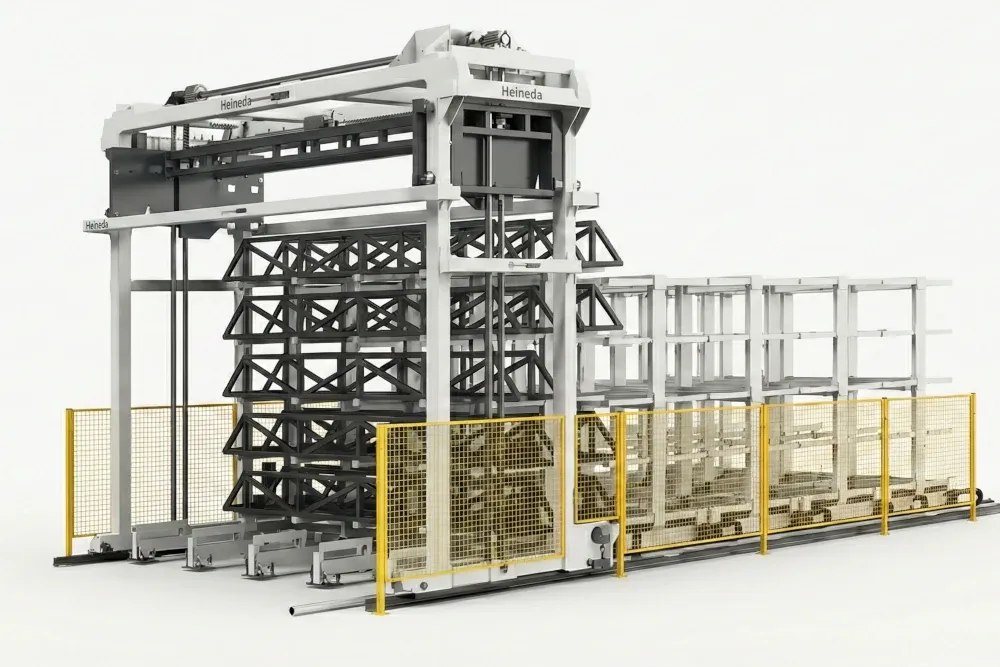

Profile Material Intelligent Storage Tower
- Width 6000 mm 236.2 in
- Layer Quantity Customisable Customisable
- Load per layer 3 t 3.3 st
- Movement method Linear servo + chain Linear servo + chain
- Transmission method Chain transmission Chain transmission
- Layer lifting speed 9 m/min 29.5 ft/min
- Inlet speed 12 m/min 39.4 ft/min
The Profile Storage and Vertical Handling System provides centralized, high-density storage for long aluminium profiles, tubes, and similar raw materials. The system integrates an upper–lower gantry handling module, material racks, storage frames, and precision guide rails. Dual-axis motion on the Y and Z directions ensures fast placement, stable retrieval, and reduced manual handling across daily operations.
A reinforced structural frame delivers high load-bearing capacity and long-term durability, supporting both single-piece and grouped storage for a wide range of material specifications. Storage layers, unit quantities, and rack dimensions can be fully customized according to factory layout, workflow planning, and production throughput requirements.
By operating with only one working aisle, the Profile Storage and Vertical Handling System increases usable floor space, improves material organization, and addresses common issues such as low storage density, difficult manual lifting, and inconsistent inventory management. The design enhances workplace safety while providing a more efficient and traceable storage process for aluminium and metal processing environments.

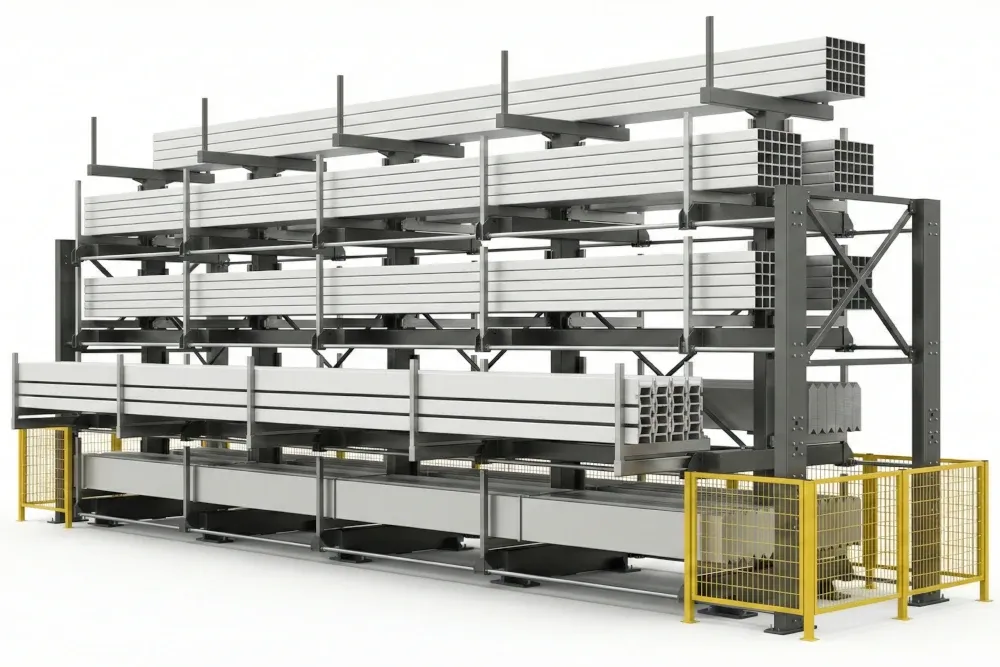

Retractable Cantilever Shelf
- Layer Options 3 / 4 / 5 layers 3 / 4 / 5 layers
- Applicable Cargo Size 6000 × 600 × 400 mm (customisable) 236.2 × 23.6 × 15.7 in (customisable)
- Cantilever Length 6300 mm (customisable) 248.0 in (customisable)
- Cantilever Width 1600–1650 mm (customisable) 63.0–65.0 in (customisable)
- Cantilever Height 2100–3400 mm (customisable) 82.7–133.9 in (customisable)
- Cargo Stop Height 300 mm 11.8 in
The retractable cantilever shelf is engineered specifically for long and irregular materials, providing a practical solution to common storage challenges in industries that handle tubes, pipes, profiles, bars, and similar elongated stock. Its extendable arm structure allows materials to be stored in an organised, accessible manner, reducing damage, improving visibility, and preventing the scattered or unsafe stacking often seen in conventional warehouses.
